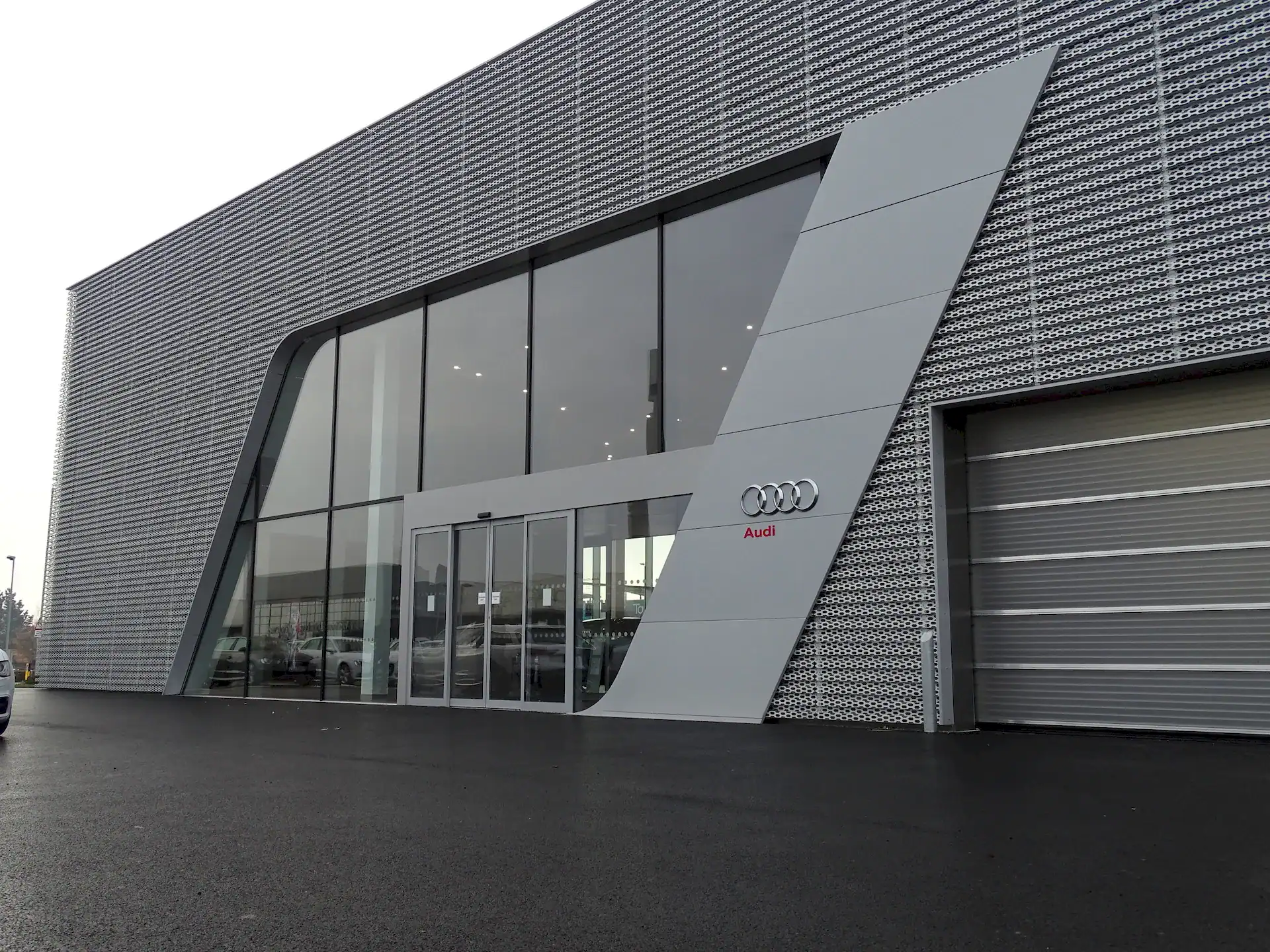

Exterior view of the Audi dealership at Futura Park, Ipswich, Suffolk, showcasing the modern facade. The building features a perforated anodised aluminium rainscreen cladding installed on an aluminium bar and bracket framework. The entrance has large floor-to-ceiling glass windows framed by angled aluminium panels, with the Audi logo displayed prominently. To the right, a large grey roller shutter door provides access to the workshop area. The surrounding area consists of freshly laid black asphalt, reflecting the dealership's premium finish.
  • Commercial

Audi Dealership, Futura Park, Ipswich, Suffolk

Client

Audi UK

Contractor

Barnes Construction

Architect

David Clarke & Associates

Order Value

£600K

Start Date

May 2016

Completion Date

November 2016

To supply and install Kingspan TopDek composite roof panels with Trocal single-ply membrane and Kingspan Five-Crown composite wall panels with an EDM Spanwall perforated anodised aluminium rainscreen façade on an aluminium bar and bracket framework to the showroom, Kingspan Lo-Pitch composite roof panels with integrated rooflights to the workshop, Kingspan RW composite roof panels to the valet building and Kingspan RW composite wall panels to the workshop and valet building.

This project is the largest aluminium rainscreen installation undertaken by ourselves, the system was simple to install which aided in good progress and overall very aesthetically pleasing when combined with the bespoke PPC aluminium curved flashings and trims, the project was handed over with zero defects and achieved a very good air test rating.

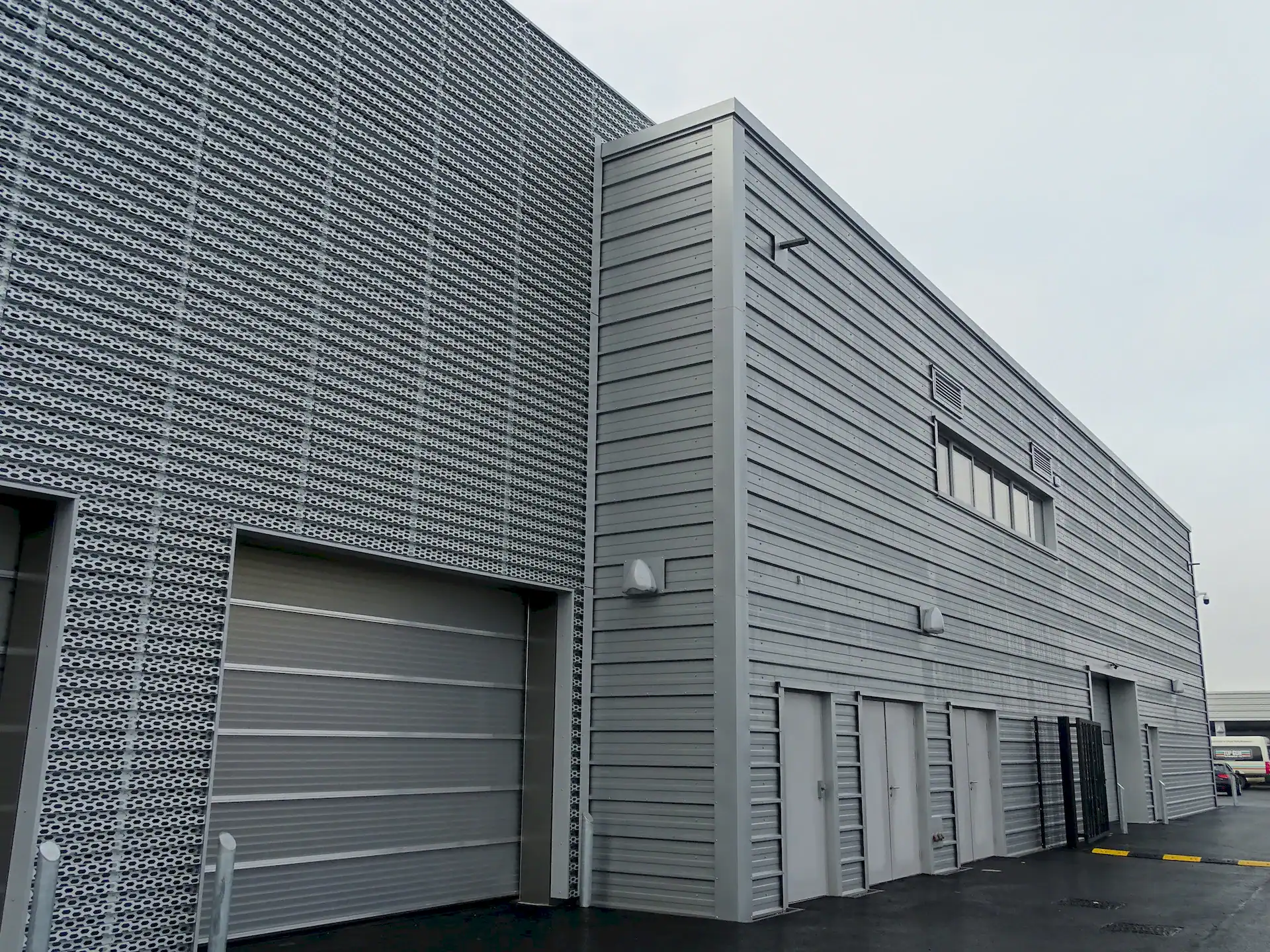

  • Side view of the Audi dealership at Futura Park, Ipswich, showing the workshop and valet building. The façade features Kingspan RW composite wall panels with a metallic silver finish, installed vertically for a sleek and modern appearance. A perforated anodised aluminium rainscreen cladding is integrated on the left side, adding a distinct design element. The workshop area includes a large roller shutter door for vehicle access, along with smaller personnel doors. The clean, functional layout complements the dealership’s contemporary aesthetic.

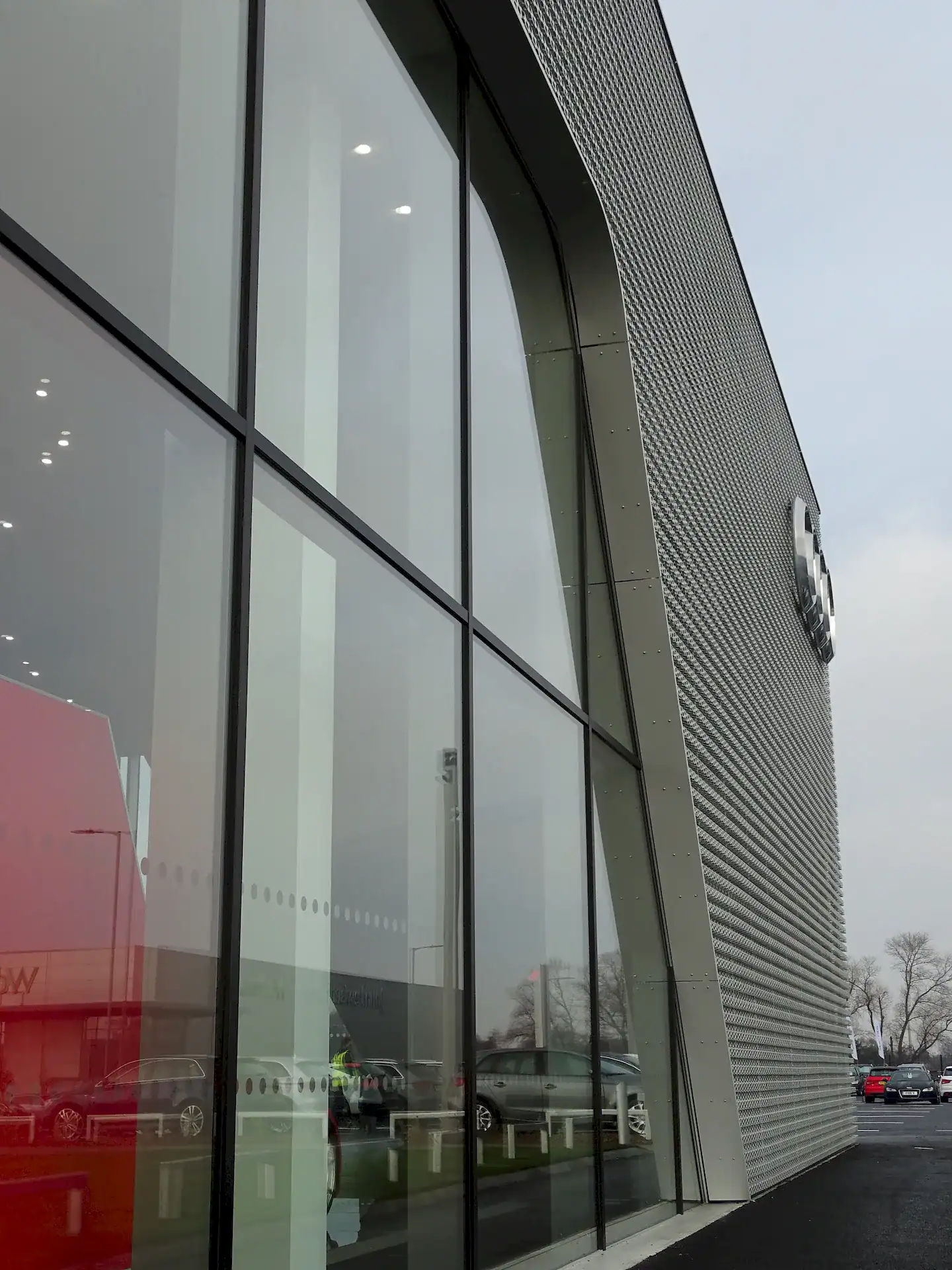

  • Close-up view of the Audi dealership showroom facade at Futura Park, Ipswich. The exterior features a modern glass curtain wall system framed with sleek aluminium trims, providing a clear view of the showroom’s interior. The rainscreen cladding, composed of perforated anodised aluminium panels, wraps around the structure, enhancing both aesthetics and functionality. The Audi logo is mounted on the upper section, standing out against the textured metal finish.

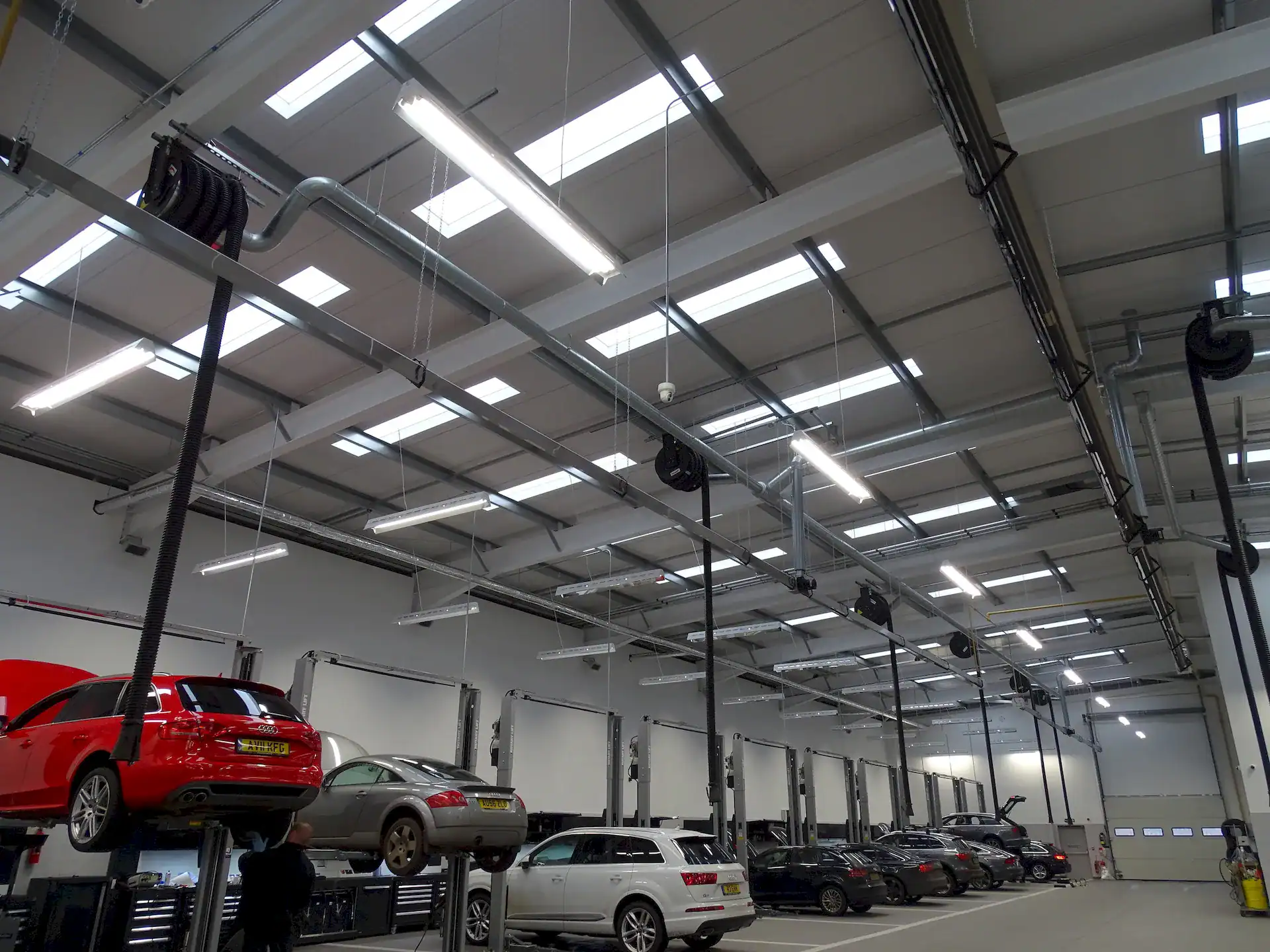

  • Interior of the Audi workshop at Futura Park, Ipswich, showing multiple car service bays equipped with hydraulic lifts. The ceiling is fitted with Kingspan Lo-Pitch composite roof panels with integrated rooflights, providing natural illumination. Overhead exhaust extraction systems and LED strip lighting contribute to a well-lit and ventilated workspace. Several vehicles, including an Audi, are positioned on lifts undergoing maintenance.
  • Side view of the Audi dealership workshop at Futura Park, Ipswich, featuring Kingspan RW composite wall panels in a sleek grey finish. The secure and modern facility includes high-level windows for ventilation, external security cameras, and well-integrated LED wall lights. The asphalt driveway is bordered by a black metal security fence, leading to the service entrance.
  • Rear exterior view of the Audi dealership workshop at Futura Park, Ipswich, showcasing Kingspan RW composite wall panels in light grey. The image features a large sectional garage door with built-in vision panels, multiple HVAC units aligned along the wall, LED security lights, and a black security gate leading to the service yard.

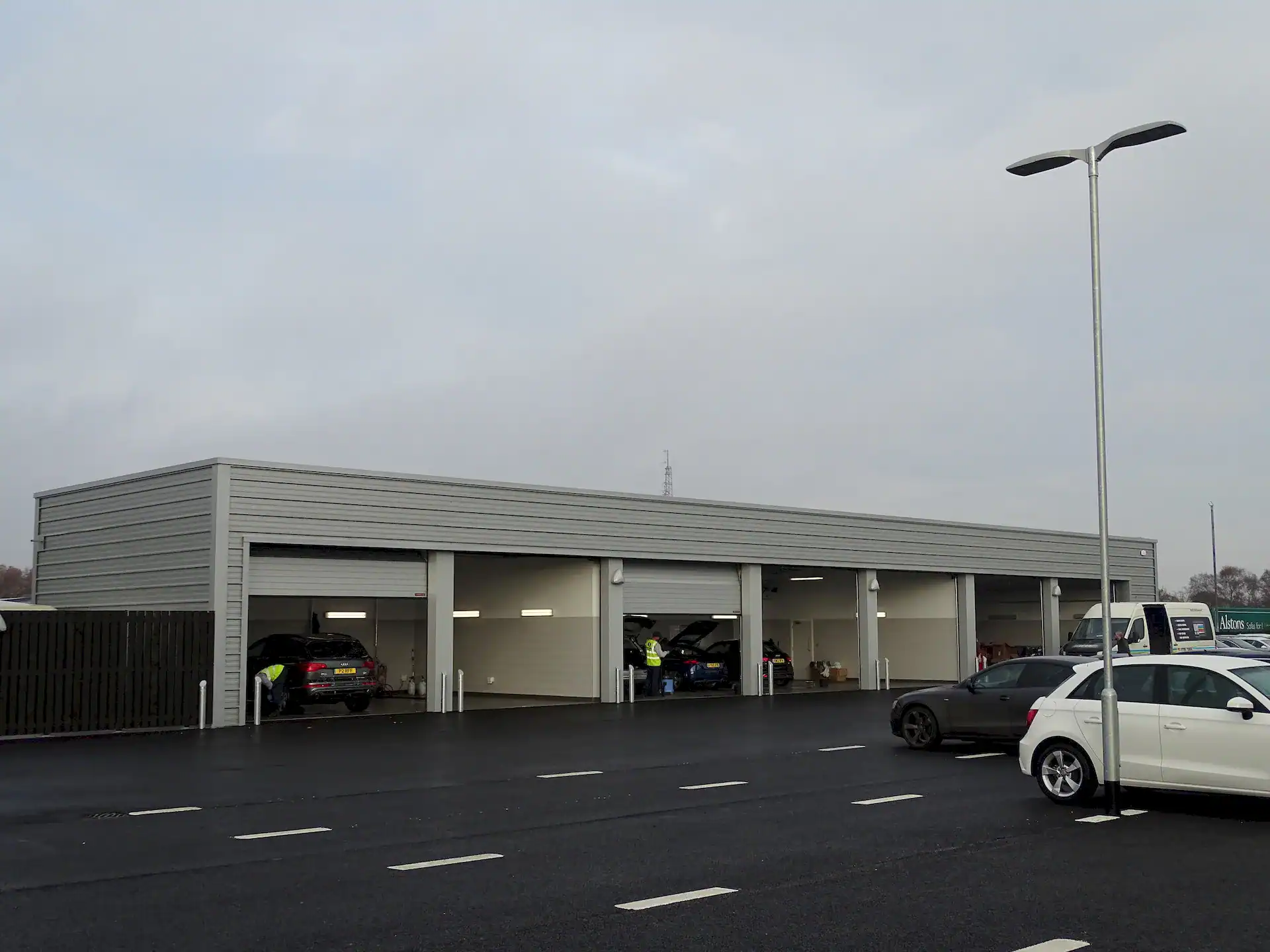

  • Exterior view of the Audi dealership valet building at Futura Park, Ipswich, constructed with Kingspan RW composite wall panels in a light grey finish. The image captures the open valet bays with cars being serviced, LED lighting inside the structure, a wet asphalt surface reflecting ambient light, and a street lamp in the foreground.
  • Front exterior view of the Audi dealership at Futura Park, Ipswich, featuring a modern facade with an EDM Spanwall perforated anodised aluminium rainscreen. The large glass entrance doors and showroom windows reflect parked cars and the surroundings. A white Audi vehicle with registration "AX15 EBO" is prominently displayed in the foreground.
  • Wide-angle view of the Audi dealership at Futura Park, Ipswich, featuring a modern showroom with a sleek EDM Spanwall perforated anodised aluminium rainscreen façade. Large glass windows showcase Audi vehicles inside, with a neatly landscaped lawn and a paved walkway leading to the entrance. The Audi logo is prominently displayed on the building.
  • Angled view of the Audi dealership at Futura Park, Ipswich, featuring its distinctive aluminium rainscreen facade. The sleek exterior is designed with EDM Spanwall perforated anodised aluminium panels. Large glass windows at the entrance reflect the surroundings, and a row of Audi vehicles is displayed in the foreground.

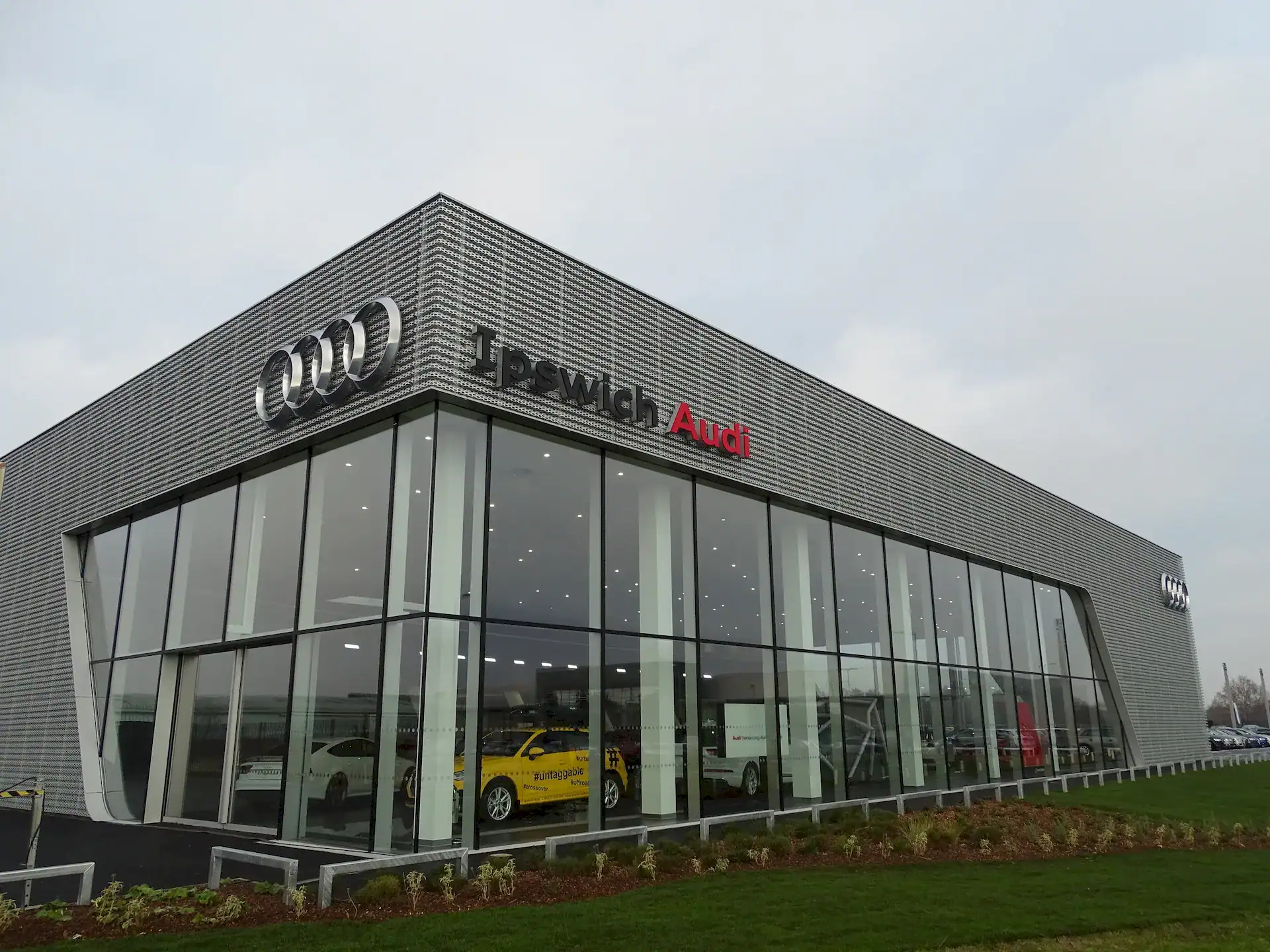

  • Front view of the Ipswich Audi dealership at Futura Park, featuring a modern aluminium rainscreen façade with the Audi logo and "Ipswich Audi" signage in bold lettering. The expansive glass showroom windows provide a clear view of the high-end vehicles on display inside, with a well-maintained lawn and landscaped greenery in the foreground.
  • Exterior view of the Audi dealership at Futura Park, Ipswich, Suffolk, showcasing the modern facade. The building features a perforated anodised aluminium rainscreen cladding installed on an aluminium bar and bracket framework. The entrance has large floor-to-ceiling glass windows framed by angled aluminium panels, with the Audi logo displayed prominently. To the right, a large grey roller shutter door provides access to the workshop area. The surrounding area consists of freshly laid black asphalt, reflecting the dealership's premium finish.
